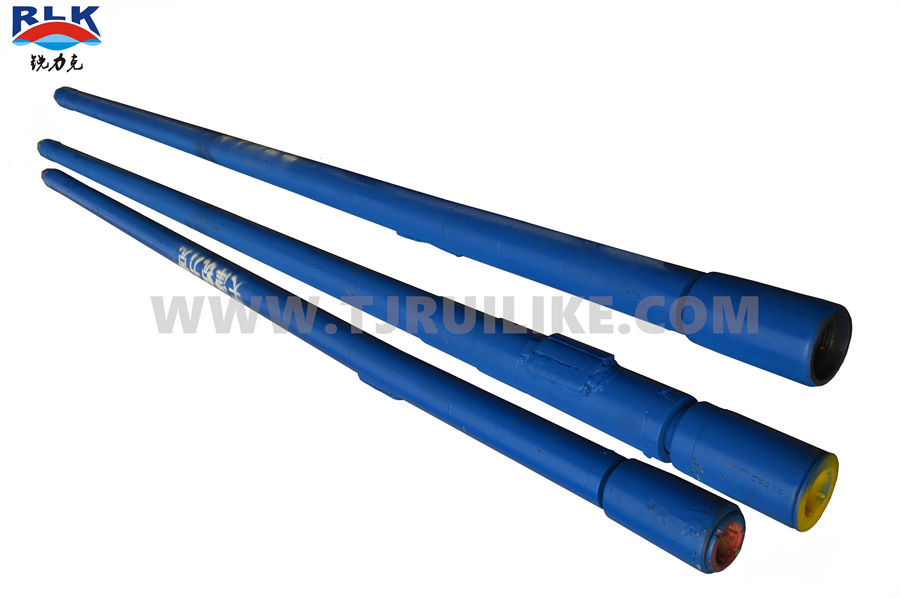

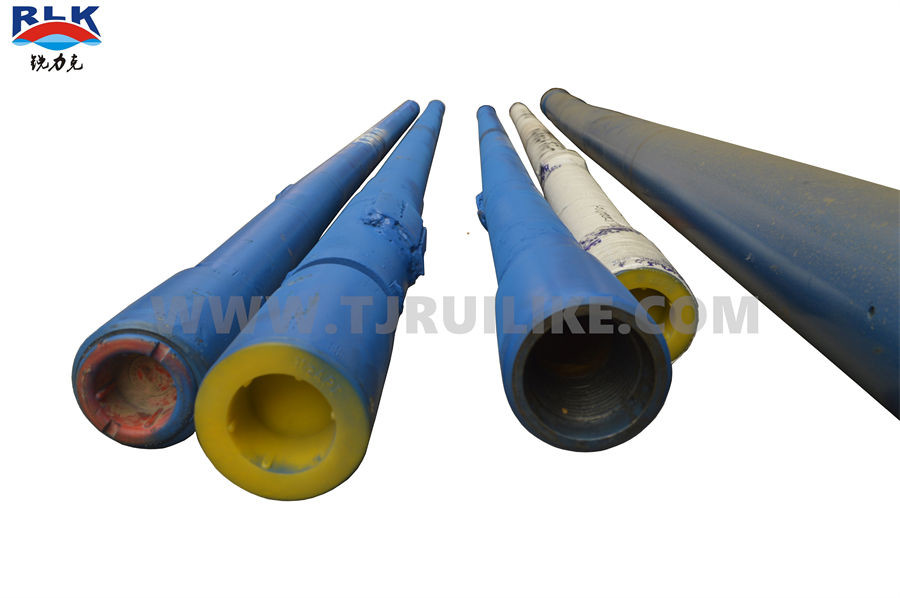

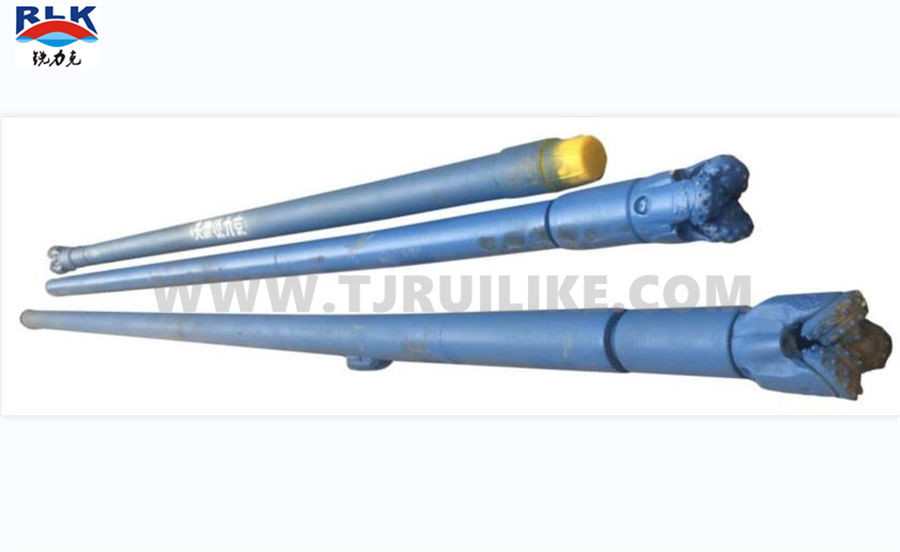

HDD mud motors
To match for rigs of Vermeer, Ditch Witch, STETON, JOVE, DHTT, DWTXS, H.H.DRILL, DILONG, GOODENG, DRILLTO, XCMG.
Mud motor size: 65/95/100/101/102/120/165/172/185/197/203/216/244 mm.

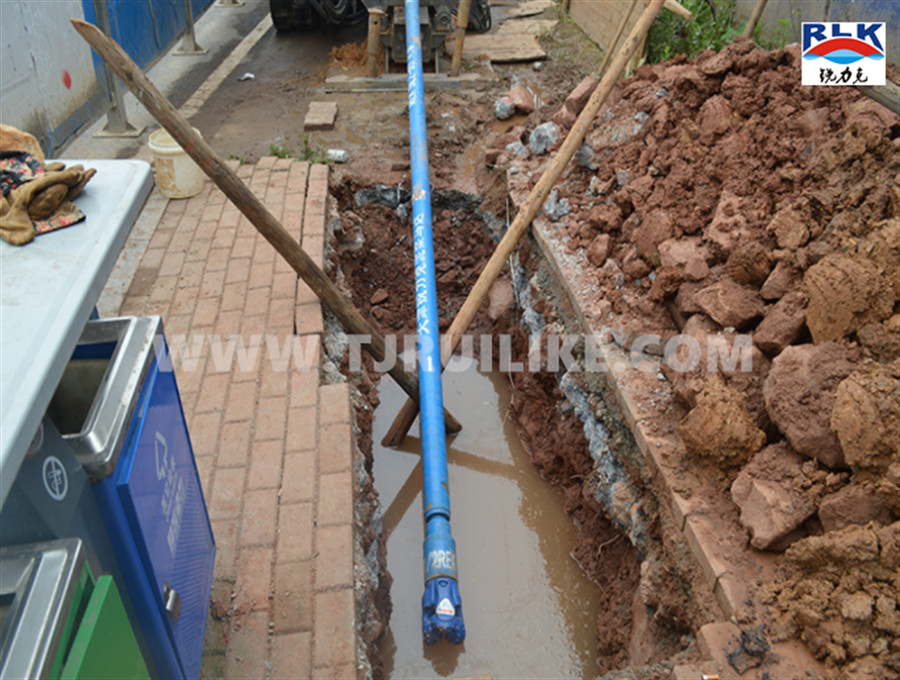

Application: horizontal directional drilling projects, underground trenchless projects.
| HDD mud motor series |
| Model of Mud Motor | Bit Size Range | Thread Both Ends | Lobes | Flow Rate | Bit Rotary Speed | Pressure Drop | Max. Output Torque | Max.Output Power | Max WOB |
| RLK4LZ54*3.5 | 60-89mm | 1.660TBG | 5:6 | 120-180LPM | 250-400r/min | 2.4Mpa | 90N·m | 12.6 Kw | 6kN |
| RLK5LZ65*3.5 | 79-111mm | 1.900TBG | 5:6 | 180-240LPM | 240-380r/min | 3.4Mpa | 180N·m | 14.8Kw | 8kN |
| RLK5LZ95*7.0 | 118-152mm | 3-1/2'' REG | 5:6 | 360-600LPM | 100-220r/min | 2.8Mpa | 955N·m | 24Kw | 50kN |
| RLK7LZ95*7.0 | 118-152mm | 3-1/2'' REG | 7:8 | 360-720LPM | 80-180r/min | 4.0Mpa | 1260N·m | 35Kw | 50kN |
| RLK5LZ120*7.0 | 149-200mm | 3-1/2'' REG | 5:6 | 600-960LPM | 95-190r/min | 3.2Mpa | 1600N·m | 38Kw | 100kN |
| RLK7LZ120*7.0 | 149-200mm | 4-1/2'' REG | 7:8 | 60-1200LPM | 80-160r/min | 4.0Mpa | 2800N·m | 62.5Kw | 100kN |
| RLK5LZ165*7.0 | 213-251mm | 4-1/2'' REG | 5:6 | 1200-1920LPM | 100-160r/min | 4.0Mpa | 3800N·m | 73Kw | 160kN |
| RLK5LZ172*7.0 | 213-251mm | 4-1/2'' IF | 5:6 | 1200-2160LPM | 106-170r/min | 4.0Mpa | 4600N·m | 115Kw | 170kN |
| RLK5LZ185*7.0 | 241-270mm | 6-5/8'' REG | 5:6 | 1200-2220LPM | 80-150r/min | 4.0Mpa | 5800N·m | 124Kw | 180kN |
| RLK5LZ197*7.0 | 251-311mm | 6-5/8'' REG | 5:6 | 1320-2700LPM | 80-150r/min | 4.0Mpa | 7600N·m | 177Kw | 200kN |
| RLK6LZ203*7.0 | 251-311mm | 6-5/8'' REG | 6:7 | 1500-3180LPM | 95-140r/min | 5.0Mpa | 9800N·m | 199Kw | 210kN |
| RLK5LZ216*7.0 | 311-394mm | 6-5/8'' REG | 5:6 | 1500-3180LPM | 85-160r/min | 5.0Mpa | 11000N·m | 220Kw | 250kN |
| RLK5LZ244*7.0 | 311-445mm | 6-5/8'' REG | 5:6 | 1500-4500LPM | 90-220r/min | 5.0Mpa | 16000N·m | 360Kw | 300kN |
| RLK5LZ100*7.0 | 118-152mm | 3-1/2'' REG | 5:6 | 360-840LPM | 140-280r/min | 3.2Mpa | 1170N·m | 50Kw | 55kN |
| RLK9LZ100*7.0 | 118-152mm | 3-1/2'' REG | 9:10 | 480-980LPM | 130-260r/min | 3.2Mpa | 1500N·m | 58Kw | 55kN |
